Size: 70x10mm (2.6x0.4inch)
Frame: Plastic UL94V0
Impeller: Plastic UL94V0
Lead Wire: UL1007AWG#24 or Equivalent (+) Red, (-) Black
Bearings: C=Ball Bearing&S=Sleeve Bearing
Life Expectancy: 70,000 Hours at 20℃-Ball. 30,000 Hours at 20℃-Sleeve.
Temperature Range: Temperature Range.
Operating Temperature: -10*C~70'C (Non-condensing)
Storage Temperature: -40'C~70'C (Non-condensing)
Approvals: UL, CUL, TUV, CE, RoHS

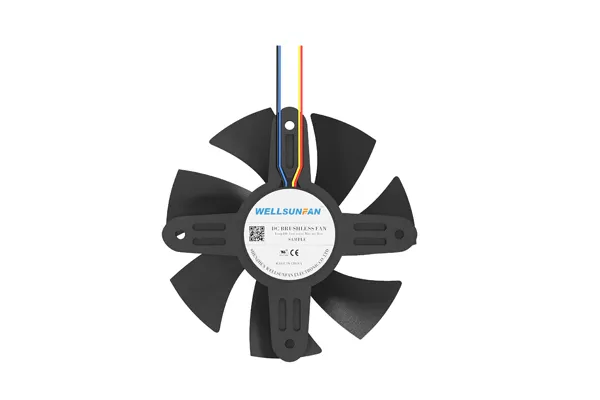

Frameless Cooling Fan Application: Electric Cooker, Purifier Industry
| Model | Bearing System | Rated Voltage | Operating Voltage | Current | Input Power | Rated Speed | Air Flow | Air Pressure | Noise | Weight | |||
| Part No. | S | C | VDC | VDC | A | Watt | R.P.M | CFM | inch-H20 | mm-H20 | dBA | g | |
| PD07010#5M | √ | √ | 5 | 3.5~5.5 | 0.26 | 1.30 | 2500 | 14.71 | 0.06 | 1.55 | 27.2 | 28.0 | |
| PD07010#5L | √ | √ | 5 | 3.5~5.5 | 0.21 | 1.05 | 2000 | 10.31 | 0.04 | 0.90 | 23.4 | 28.0 | |
| PD07010#12H | √ | √ | 12 | 7.0~13.8 | 0.26 | 3.12 | 3000 | 18.46 | 0.08 | 2.08 | 30.9 | 28.0 | |
| PD07010#12M | √ | √ | 12 | 7.0~13.8 | 0.19 | 2.28 | 2500 | 14.71 | 0.06 | 1.55 | 27.2 | 28.0 | |
| PD07010#12L | √ | √ | 12 | 7.0~13.8 | 0.15 | 1.80 | 2000 | 10.31 | 0.04 | 0.90 | 23.4 | 28.0 | |
| PD07010#24H | √ | √ | 24 | 14~27.6 | 0.16 | 3.84 | 3000 | 18.46 | 0.08 | 2.08 | 30.9 | 28.0 | |
| PD07010#24M | √ | √ | 24 | 14~27.6 | 0.12 | 2.88 | 2500 | 14.71 | 0.06 | 1.55 | 27.2 | 28.0 | |
| PD07010#24L | √ | √ | 24 | 14~27.6 | 0.08 | 1.92 | 2000 | 10.31 | 0.04 | 0.90 | 23.4 | 28.0 | |
| All models could be customized on voltage or any other requirements to fit your need. | |||||||||||||
