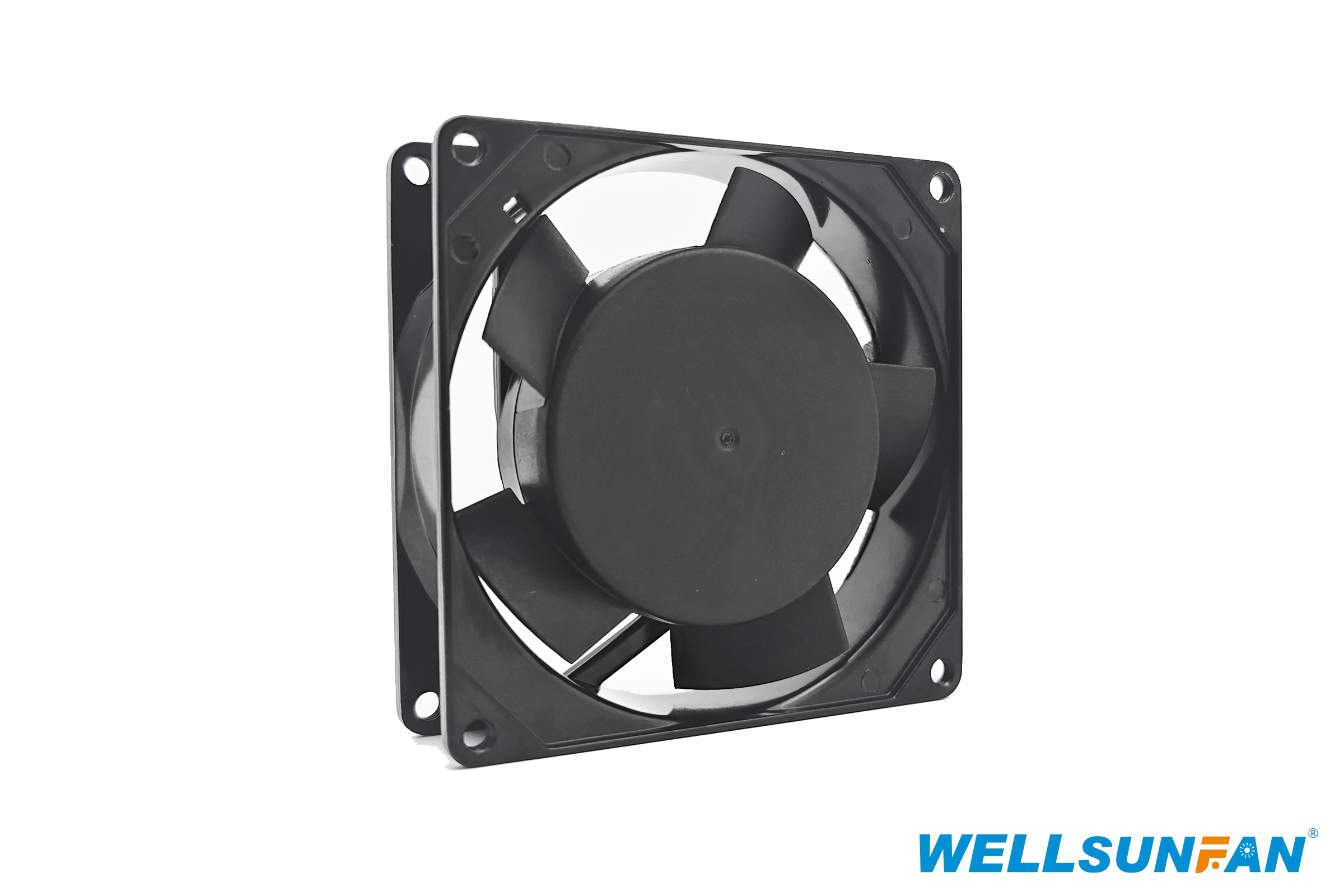

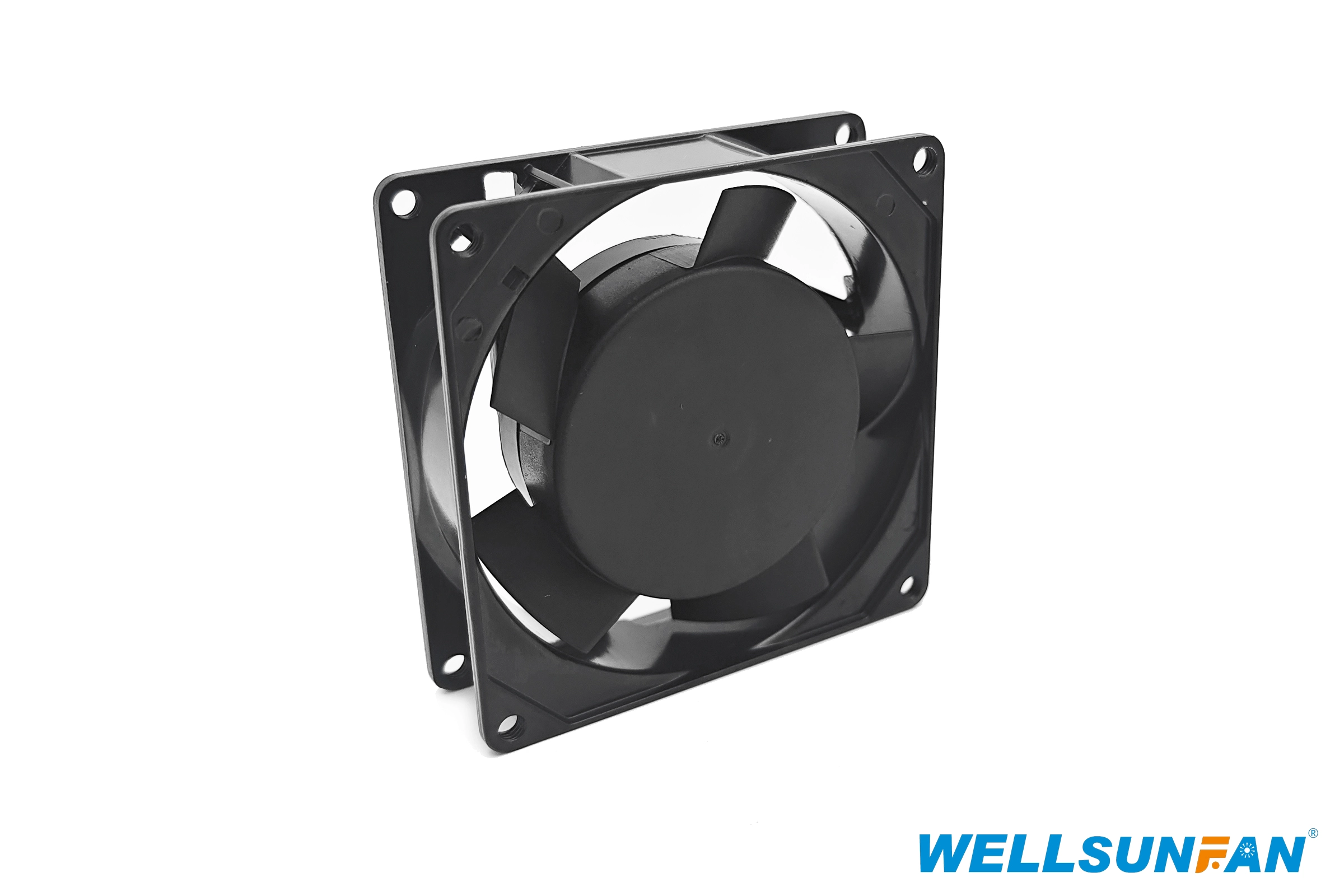

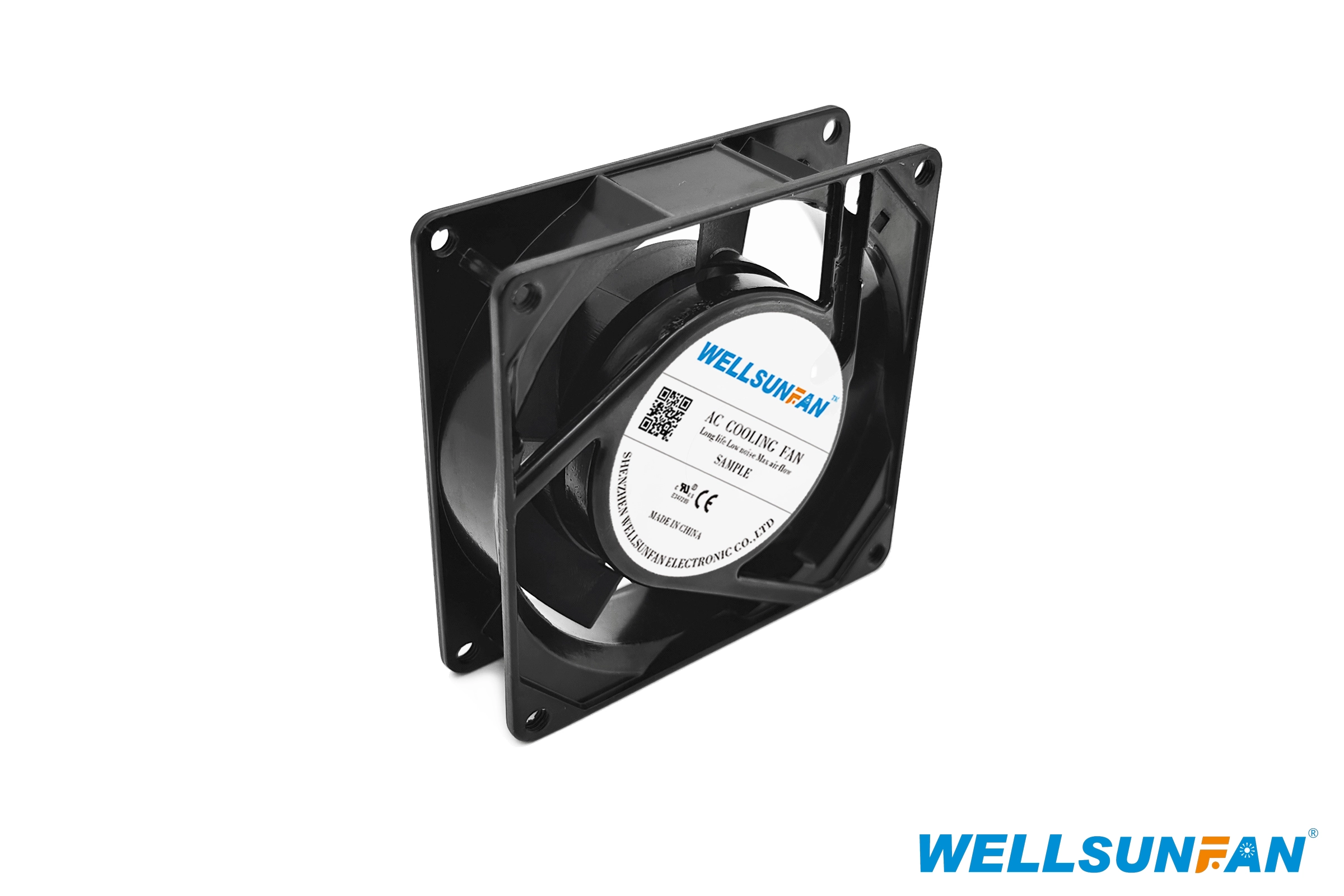

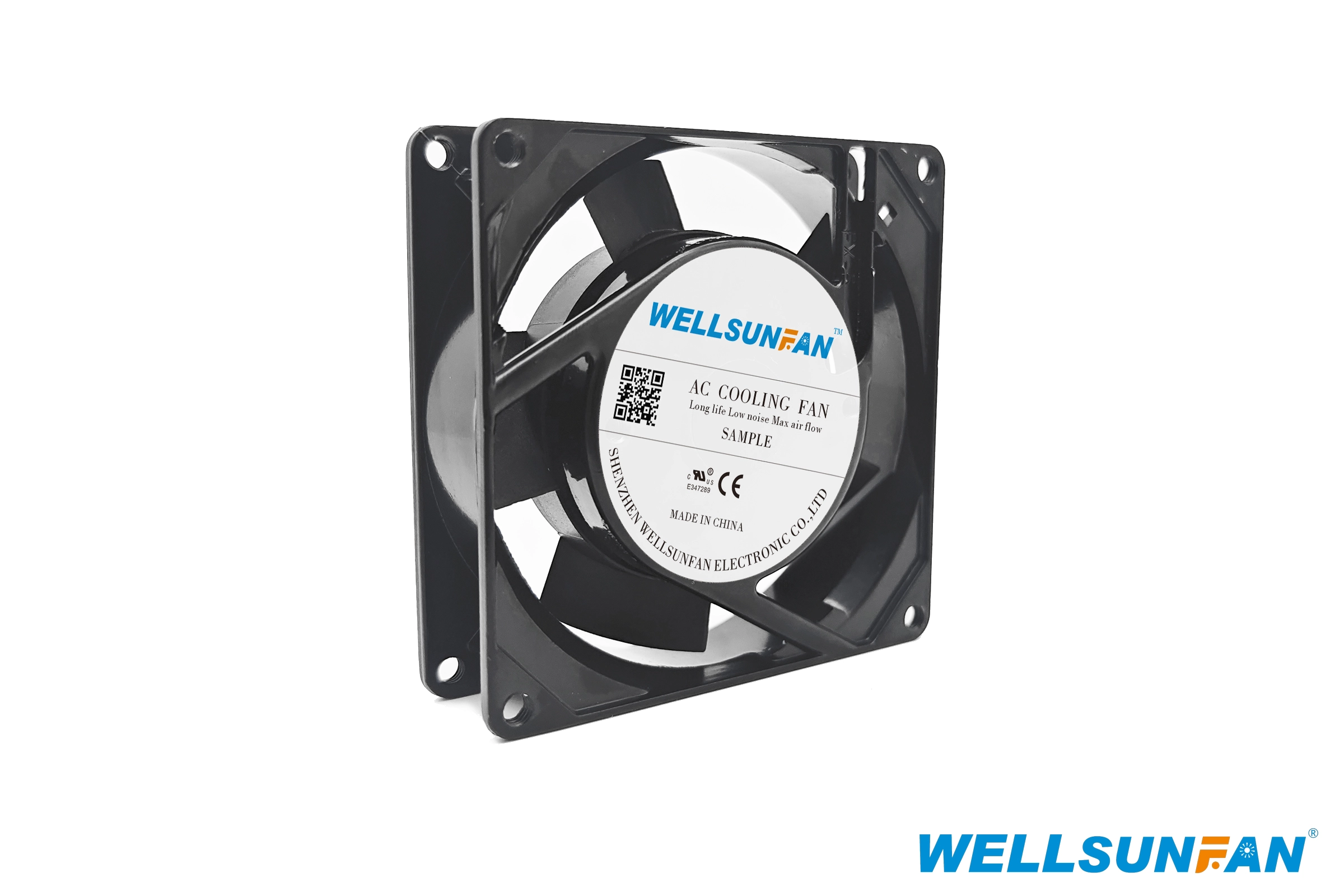

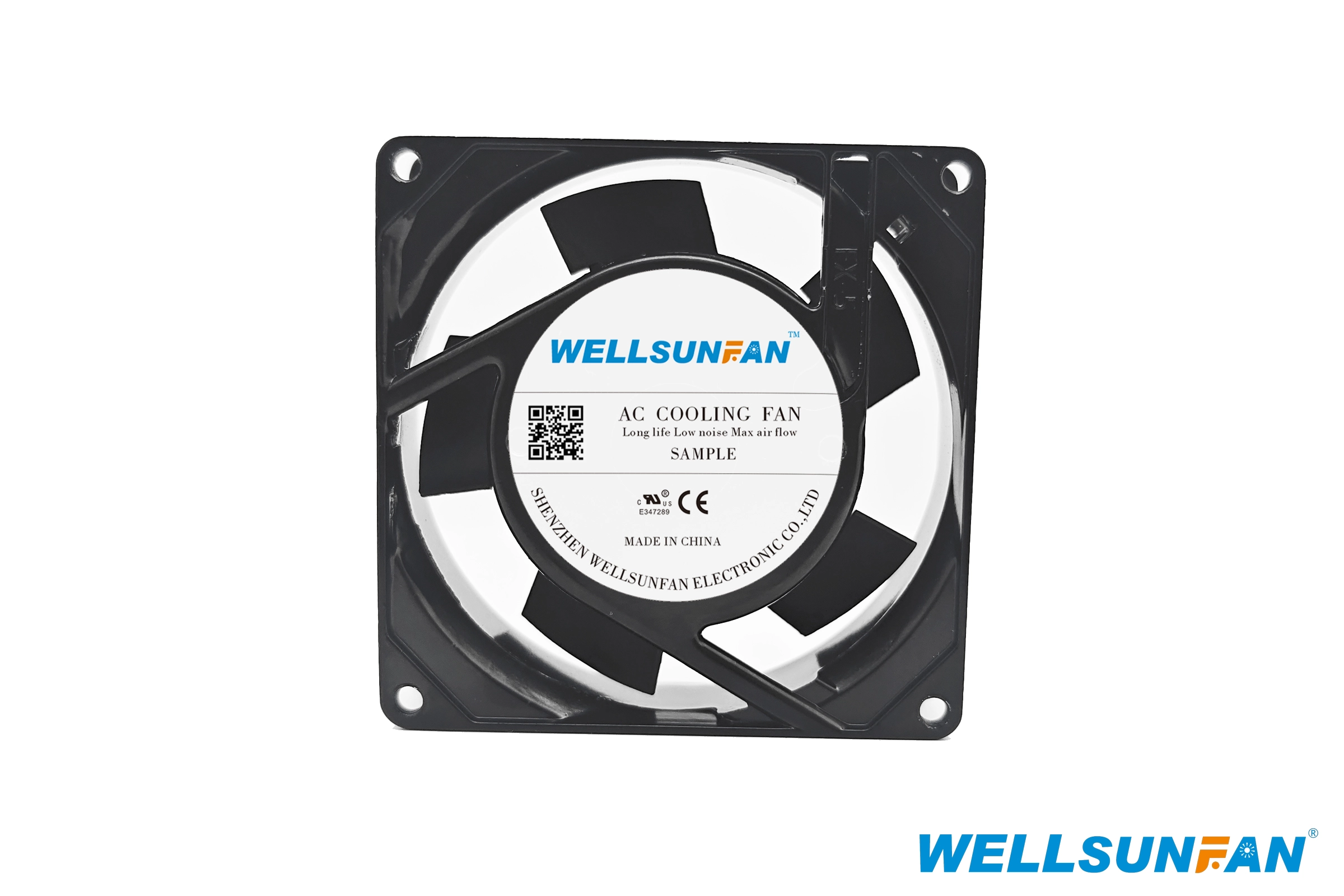

Size: 92x92x25mm (3.6x3.6x1.0inch)
Frame: Die-casting aluminum painted black
Impeller: Plastic UL94V0
Dielectric Strength: 50/60Hz 1500VAC 1min (Between input terminal and frame)
Bearings: C=Ball Bearing&S=Sleeve Bearing
Life Expectancy: 60,000 Hours at 20℃-Ball. 30,000 Hours at 20℃-Sleeve
Temperature Range: Temperature Range
Operating Temperature: -10*C~70'C (Non-condensing)
Storage Temperature: -40'C~70'C (Non-condensing)
Approvals: CE
| Model | Bearing System | Rated Voltage | Freq | Current | Input Power | Rated Speed | Air Flow | Air Pressure | Noise | Weight | |||
| Part No. | S | C | VDC | Hz | A | Watt | R.P.M | CFM | inch-H20 | mm-H20 | dBA | g | |
| AC09225#11M | √ | √ | 110 | 50/60 | 0.15 | 16.50 | 2800 | 31.33 | 0.18 | 4.57 | 36.2 | 240.0 | |
| AC09225#11L | √ | √ | 110 | 50/60 | 0.15 | 16.50 | 2700 | 30.23 | 0.16 | 4.06 | 35.8 | 240.0 | |
| AC09225#22M | √ | √ | 220 | 50/60 | 0.08 | 17.60 | 2400 | 25.55 | 0.12 | 3.05 | 32.4 | 240.0 | |
| AC09225#22L | √ | √ | 220 | 50/60 | 0.08 | 17.60 | 2300 | 24.46 | 0.11 | 2.79 | 32.1 | 240.0 | |
| All models could be customized on voltage or any other requirements to fit your need. | |||||||||||||
| Note:"11"is 110VAC,"22"is 220VAC | |||||||||||||
