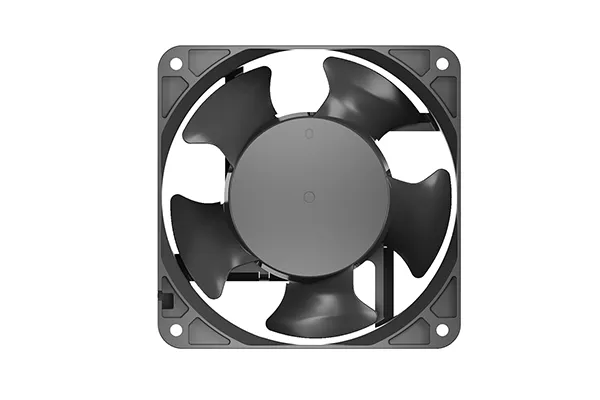

Size: 120x120x38mm(4.7x4.7x1.5inch)
Frame: Plastic UL94V0
Impeller: Plastic UL94V0
Lead Wire: UL1007AWG#22 or Equivalent (+) Red, (-) Black
Bearings: C=Ball Bearing
Life Expectancy: 70,000Hours at 40℃ Ball bearing
Input Voltage: A rated voltage range of 100V~240V (50/60Hz) AC&DC, Rotation speed remains constant even at different input voltages
Dielectric Strength: 1800VAC/SmA/3S (Between input terminal and frame)
Temperature Range: Operating Temperature -25*c~70'C (Non-condensing)
Storage Temperature: -40*C~80*C(Non-condensing)
EC FAN Specials: RD, FG, IP56
| Model | Bearing System | Rated Voltage | Power | Rated Speed | Air Flow | Air Pressure | Noise | Weight | ||
| Part No. | C | VDC | Watt | R.P.M | CFM | inch-H20 | mm-H20 | dBA | g | |
| EC12038##E | √ | 100~240 | 15.00 | 4000 | 142.79 | 0.52 | 13.21 | 54.5 | 147.0 | |
| EC12038##H | √ | 100~240 | 9.50 | 3500 | 125.79 | 0.41 | 10.41 | 50.7 | 147.0 | |
| EC12038##M | √ | 100~240 | 6.20 | 3000 | 109.37 | 0.33 | 8.38 | 45.6 | 147.0 | |
| EC12038##S | √ | 100~240 | 4.20 | 2500 | 90.31 | 0.22 | 5.59 | 40.3 | 147.0 | |
| All models could be customized on voltage or any other requirements to fit your need. | ||||||||||
