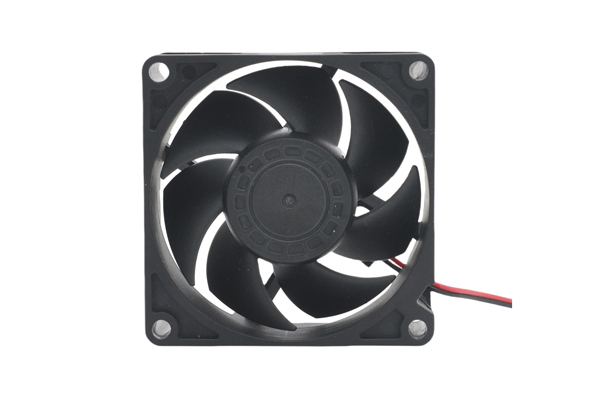

Size: 70x70x25mm (2.6x2.6x1.0inch)
Frame: Plastic UL94V0
Impeller: Plastic UL94V0
Lead Wire: UL1007AWG#24 or Equivalent (+) Red, (-) Black
Bearings: C=Ball Bearing&S=Sleeve Bearing
Life Expectancy: 70,000 Hours at 20℃-Ball. 30,000 Hours at 20℃-Sleeve.
Temperature Range: Temperature Range.
Operating Temperature: -10*C~70'C (Non-condensing)
Storage Temperature: -40'C~70'C (Non-condensing)
Approvals: UL, CUL, TUV, CE, RoHS
DC FAN Specials: RD, FG, IP56, PWM
Rated Voltage: 12V/24V Noise: 27.20~38.20dBA
Rated Current: 0.08~0.30A Rated Input Power: 1.80~4.80W
Speed: 3000~4500RPM Air Flow: 23.07~35.03CFM
Weight: 52.0g Mounting: Free Standing
| Model | Bearing System | Rated Voltage | Operating Voltage | Current | Input Power | Rated Speed | Air Flow | Air Pressure | Noise | Weight | |||
| Part No. | S | C | VDC | VDC | A | Watt | R.P.M | CFM | inch-H20 | mm-H20 | dBA | g | |
| FD07025#12E | √ | √ | 12 | 7.0~13.8 | 0.30 | 3.60 | 4500 | 35.03 | 0.28 | 7.11 | 38.2 | 52.0 | |
| FD07025#12H | √ | √ | 12 | 7.0~13.8 | 0.25 | 3.00 | 4000 | 30.85 | 0.22 | 5.59 | 34.8 | 52.0 | |
| FD07025#12M | √ | √ | 12 | 7.0~13.8 | 0.20 | 2.40 | 3500 | 27.21 | 0.17 | 4.32 | 31.1 | 52.0 | |
| FD07025#12L | √ | √ | 12 | 7.0~13.8 | 0.15 | 1.80 | 3000 | 23.07 | 0.13 | 3.30 | 27.2 | 52.0 | |
| FD07025#24E | √ | √ | 24 | 14~27.6 | 0.20 | 4.80 | 4500 | 35.03 | 0.28 | 7.11 | 38.2 | 52.0 | |
| FD07025#24H | √ | √ | 24 | 14~27.6 | 0.16 | 3.84 | 4000 | 30.85 | 0.22 | 5.59 | 34.8 | 52.0 | |
| FD07025#24M | √ | √ | 24 | 14~27.6 | 0.12 | 2.88 | 3500 | 27.21 | 0.17 | 4.32 | 31.1 | 52.0 | |
| FD07025#24L | √ | √ | 24 | 14~27.6 | 0.08 | 1.92 | 3000 | 23.07 | 0.13 | 3.30 | 27.2 | 52.0 | |
| All models could be customized on voltage or any other requirements to fit your need. | |||||||||||||
